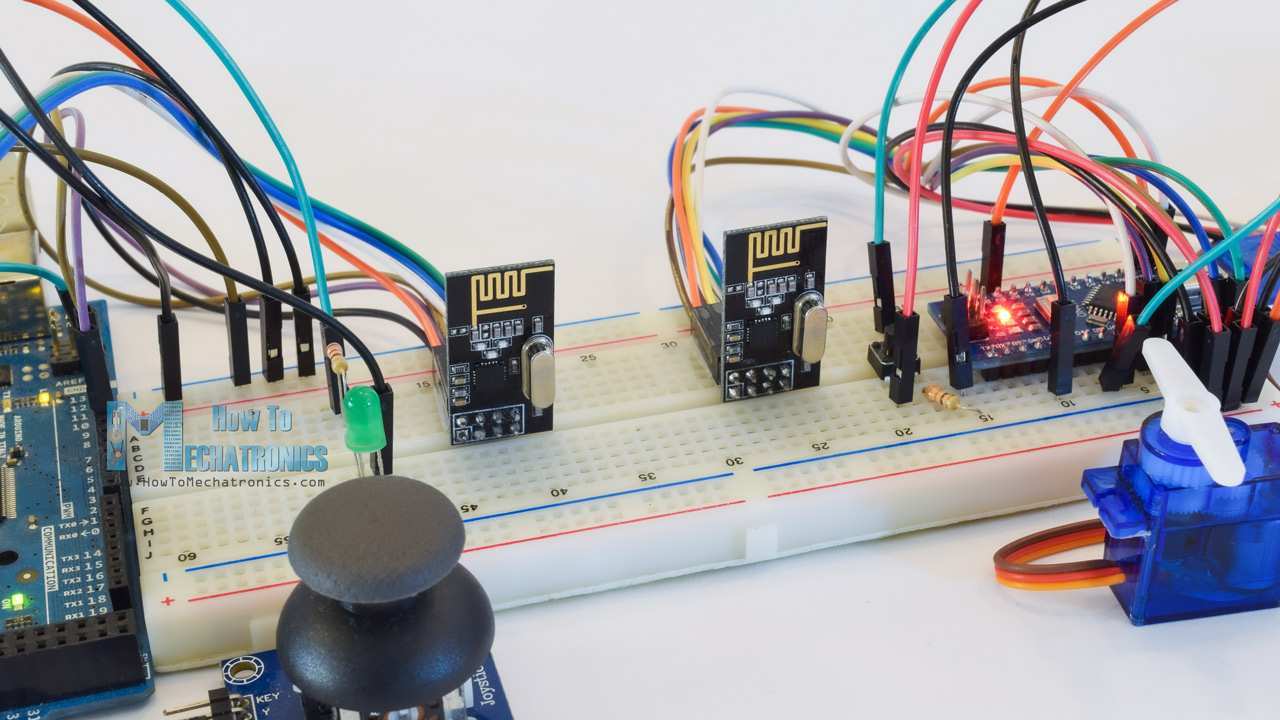

In the first example for nrf24l01 arduino interfacing we are going to simply send the data from one arduino to other arduino.

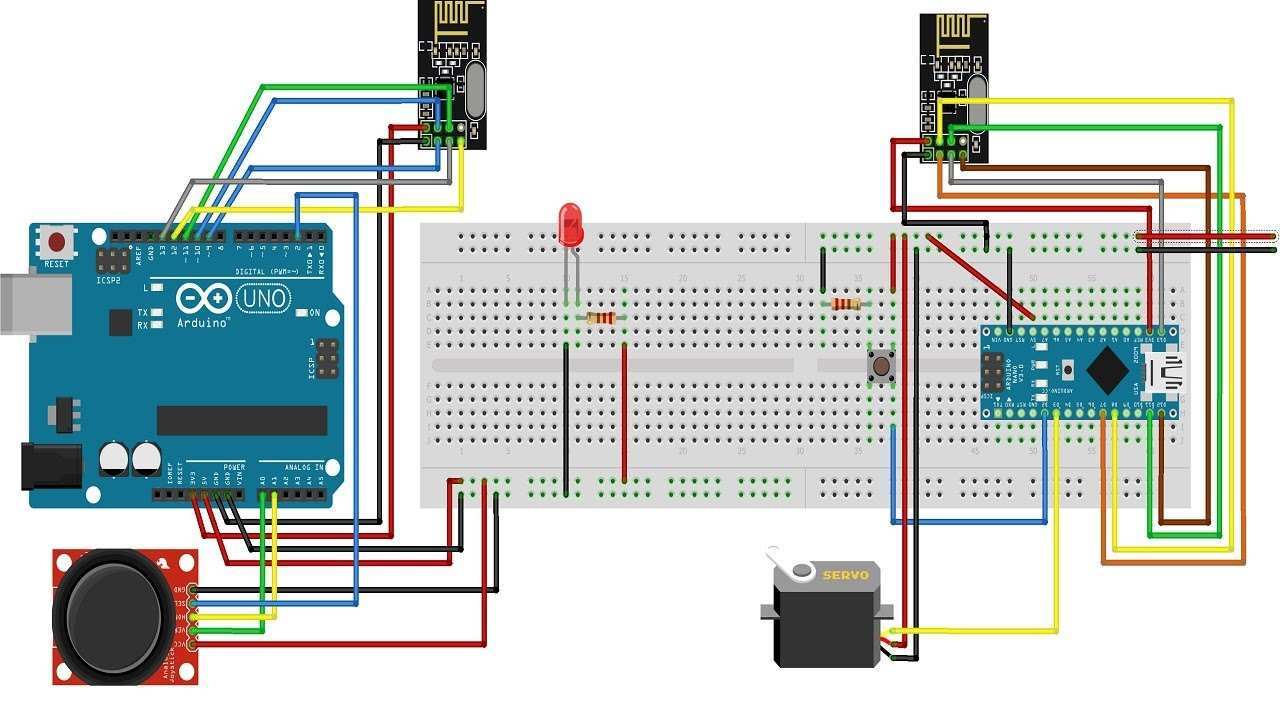

Arduino nrf24l01 beispiel. Das nrf24l01 funkmodul ist eine weiterentwicklung vom klassischen nrf24. For connecting we suggest using female. When we will press the button connected to the first arduino led connected to the second arduino will light up. Die neue version wird auch gerne als nrf24l01 pa lna bezeichnet.

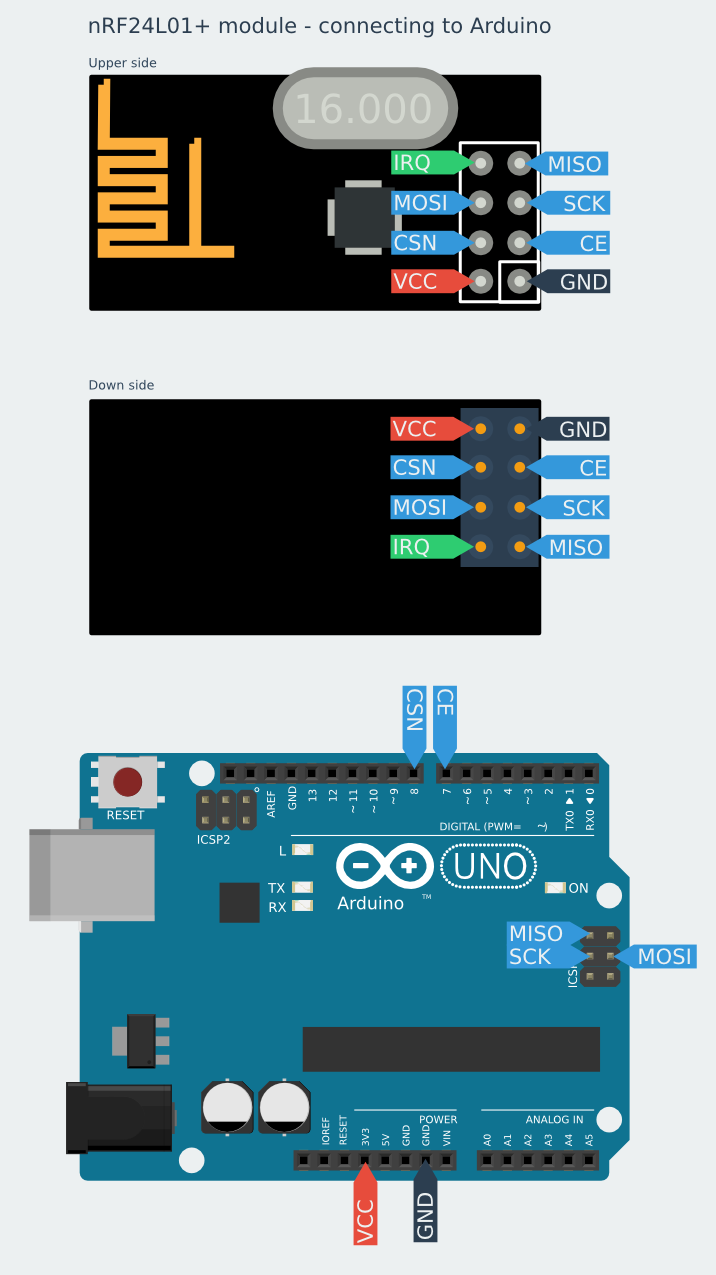

Arduino boards using the nrf24l01 transceiver module. Achte bitte unbedingt darauf dass du den vcc pin am chip mit dem 3 3 v pin vom arduino verbindest. Arduino 1 0 r3 standard but also with older boards spi signals are in the icsp connector. Hierfür verbinden wir den arduino uno mit dem nrf24l01 chip.

The nrf24l01 is based on the nordic semiconductor nrf24l01 rf transceiver ic for the 2 4ghz ism industrial scientific and medical band specs. Contribute to maniacbug rf24 development by creating an account on github. We would like to show you a description here but the site won t allow us. Diese version hat eine stärkere endstufe und einen externen antennenanschluss wo reichweiten von bis zu 1000 metern möglich sein sollen.

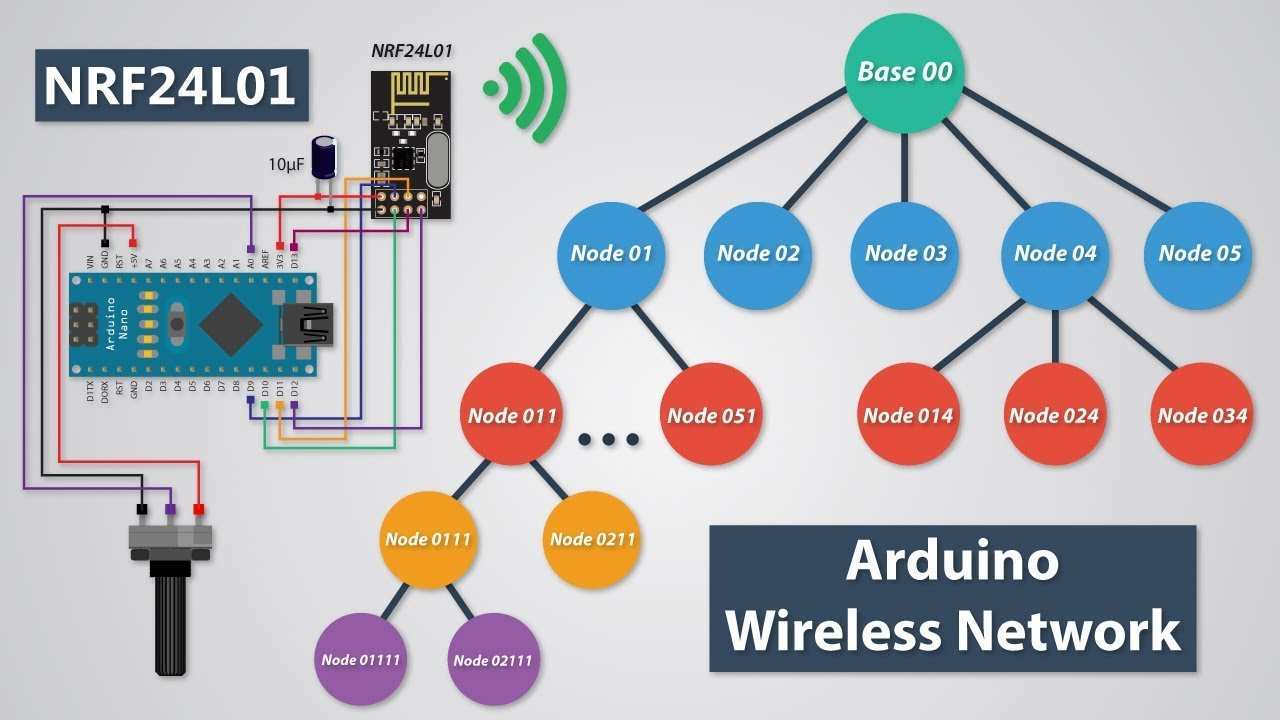

3 3v nominal vcc 5v tolerant inputs. Arduino info nrf24l01 2 4ghz howto author. Overview for explaining the wireless communication we will make two examples the first one will be sending a simple hello world message from one arduino to another and in the second. For the purposes of this tutorial we ll be demonstrating interfacing the module with an arduino uno microcontroller.

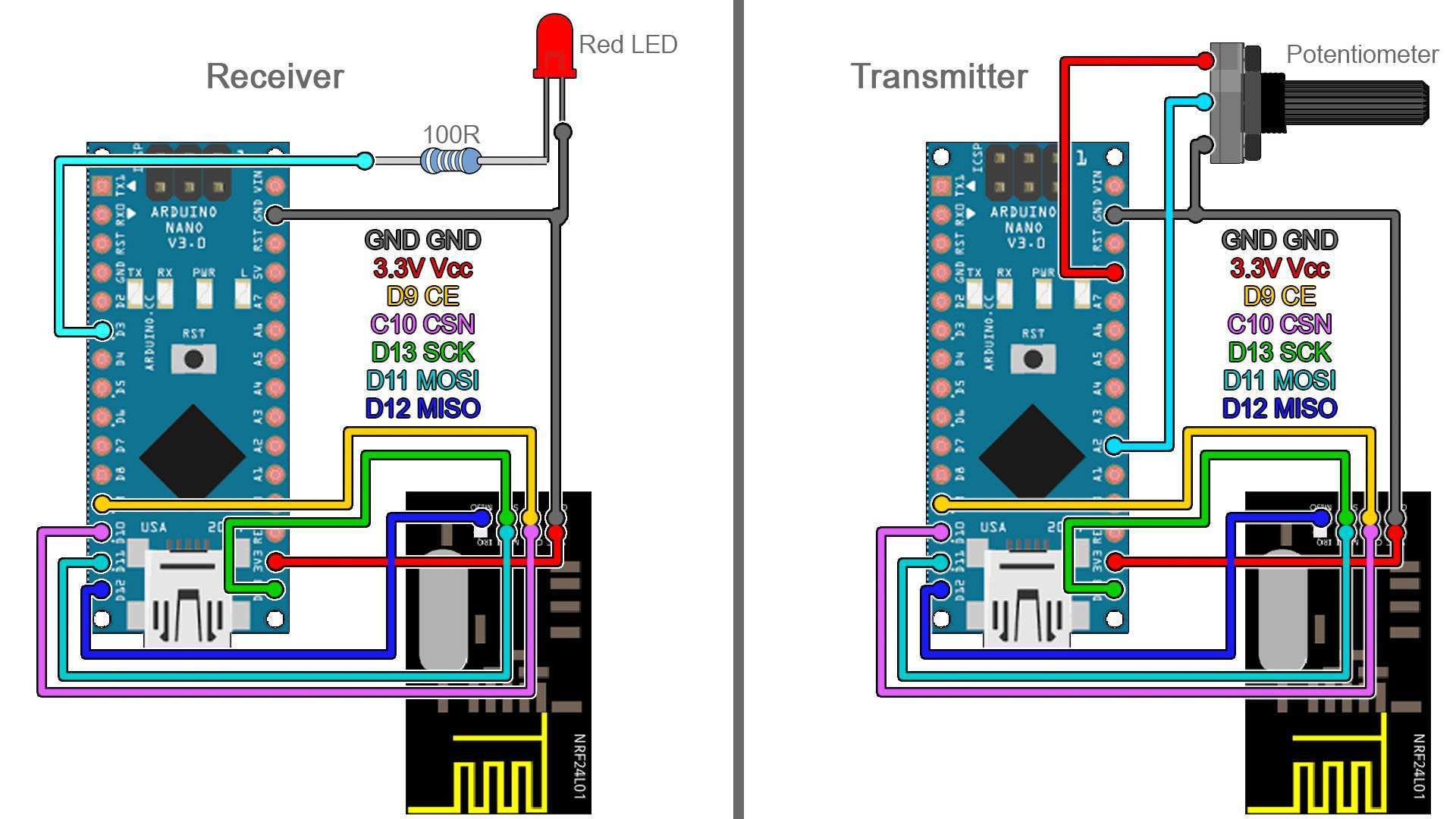

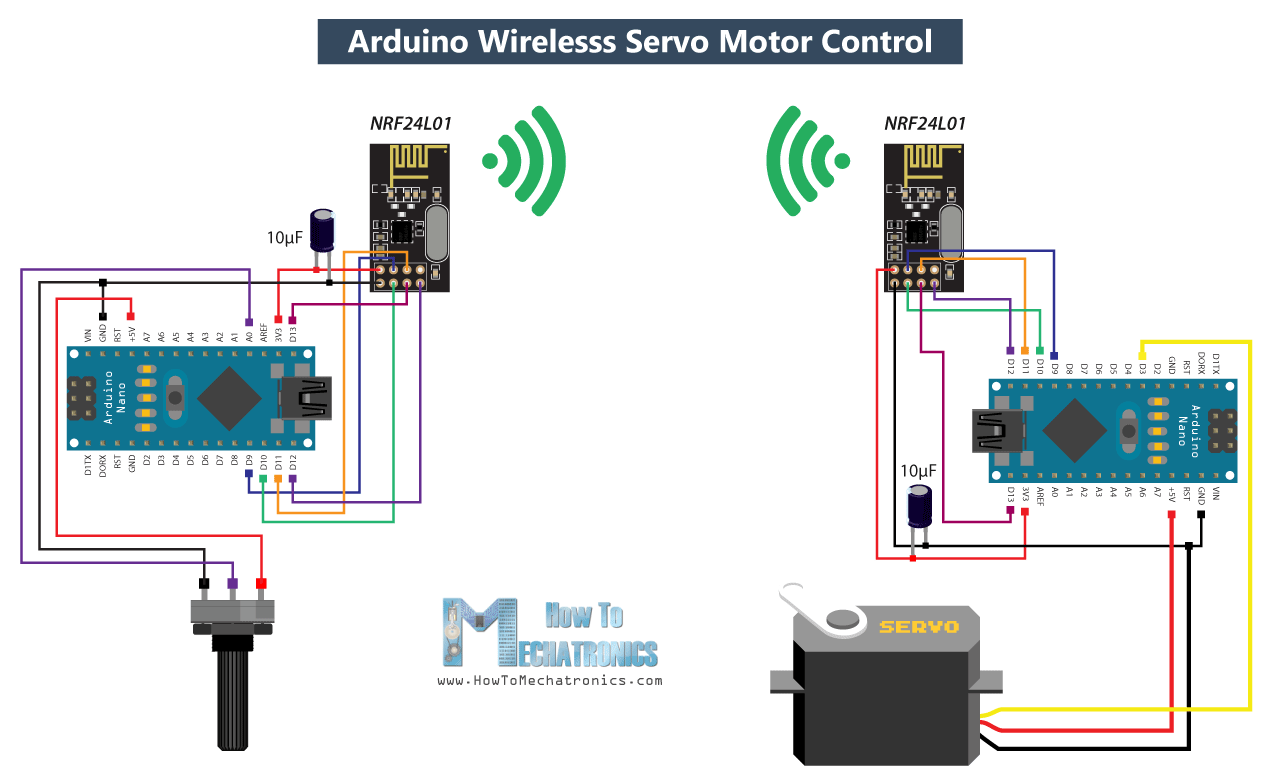

Connecting nrf24l01 and arduino4. Example 1 nrf24l01 arduino interfacing. Arduino driver for nrf24l01. Just connect pins on the same name on arduino board and nrf24l01 wireless module.

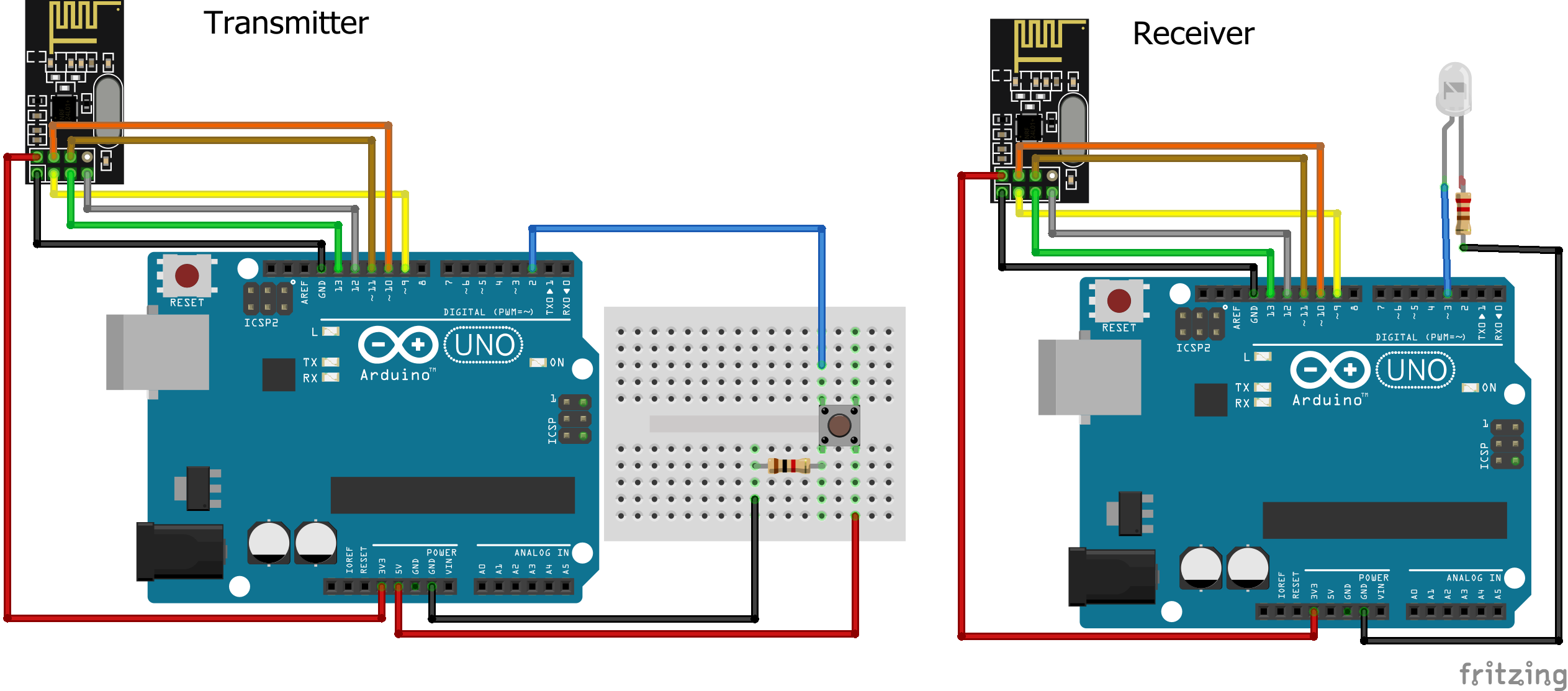

Schematic is very universal and fits for all the arduino s. You can watch the following video or read the written tutorial below.
